ALPHANE

With their high smoothness, Oji F-Tex’s ALPHAN E-201 series polypropylene films have become popular with a large number of customers. The fish-eye less OPP film ALPHAN FG-201 was developed and commercialized as an advanced series to meet customer requirements for polypropylene films with reduced optical defects and higher surface smoothness. Compared with the ALPHAN E-201 series, the ALPHAN FG-201 reduces fish-eye defects
by about 90%* through advanced screening technology to reduce minute contamination, enhanced purity of resin raw materials, and improved process cleaning.

*Reduction rate of 99% compared with general PP films (both figures based on comparison with company products)

フィッシュアイレス  O PP フィルム

フィッシュアイについて

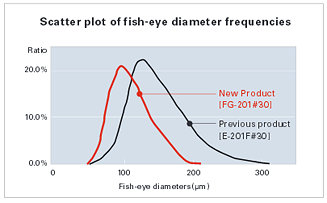

The number of fish-eyes was reduced by 90% compared with the ALPHAN E-201 series, and the average size of the fish-eyes also decreased (comparison with company products; reference figures).

詳細写真

表面性

表面

By not using anti-blocking and other additives, the ALPHAN E-201 series features superior surface properties with minimal unevenness.

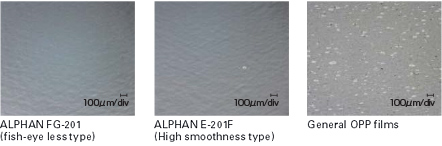

ALPHAN FG-201 takes the surface qualities to another level by eliminating fish-eyes (see reference image).

想定用途

Leveraging the surface inertness properties of polypropylene films, the product can be used as a release film with low pollution risk to the adherend.
■Various films for optical, semiconductor applications
・Transfer films ・Surface protection films
・Cover films for adhesive and bonding surfaces
・Over-lamination films
・Carrier films for manufacturing processes, etc

参考物性

(Standard properties chart; reference figures)


Direction Thickness
(μm)
Tensile strength
(MPa)
Breaking elongation
(%)
Thermal shrinkage ratio
(%)
Haze
(%)
Surface roughness
(μm)
Number of fish-eyes *
Direction/Surface   MD
TD
MD
TD
MD
TD


FG-201
30.0 150
330
185
60
2.0
1.0
0.3 0.05 <10
E-201F 30.0 150
330
185
60
2.0
1.0
0.3 0.05 <10
Test method JIS
P 8118
JIS
Z 1712
JIS
Z 1712
JIS
Z 1712
JIS
K 7136
JIS
B 0601


*Test me thod

製品仕様

■Film thickness : 25 ~ 50μm
■Product width (Max) : 1600mm
Please do not hesitate to enquire about custom specifications.

Advanced Films Sales Dept
Marketing & Development Dept
+81-3-5550-3100
